At Precision Industrial Services, we understand the rigorous requirements particular to industrial air movement applications. The Industrial fans and blowers, silencers, dampers, and flexible connectors we provide are designed and built for users who value quality craftsmanship and reliable performance. Our standard product offering of centrifugal and axial industrial fans and blowers includes backward inclined fans, backward curved fans, air foil fans, industrial exhauster fans, material handling fans, trim scrap fans, radially tipped fans, tube axial fans, and high pressure/turbo series blowers. Our accessory lines include industrial dampers, fan silencers, flexible connectors, as well as other accessories items. Many of our products can be manufactured from corrosion resistant stainless-steel materials, or abrasion resistant materials depending on the application requirements.
Our customer service and engineering staff are ready to help assist you in selecting the right product for your application. We want to be your trusted advisor when it comes to selecting the right product for your industrial fan and blower application needs.
Backward Inclined Centrifugal Fans
Backward Incline fan wheels have flat, backwardly inclined, single thickness blades. Non-overloading high efficiency design generates low to moderate pressures.
Airstream/Performance: Clean air to light dust loading, low to high volume and low to medium pressure.
Applications: Supply fans, forced draft fans, dust collector fans, baghouse, fans bin vent, exhaust fans, combustion air, reverse air, dryer fans, kiln and flue gas recirculation, fume hood and spray booths, undergrate, cooling air fans, balancing fans, general ventilation, process, corrosive and high temp applications.
- Sizes 12-1/4” – 98-1/4” Wheel Diameter
- AMCA Class 2, 3, 4 & 5
- Volume up to 445,000 CFM
- Pressure up to 28″ WG
- Temperature Range -30° to 800°F
- Arrangements 1, 3, 4, 4V, 7, 8, 9

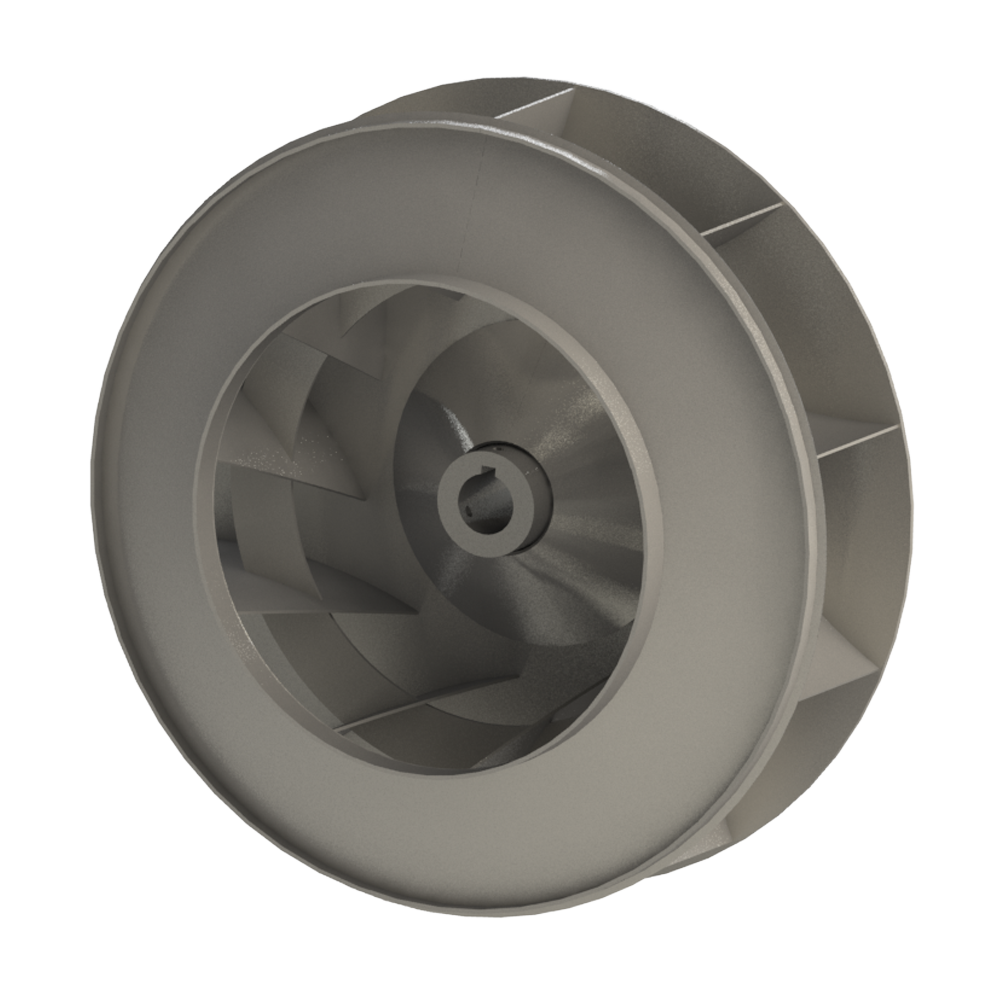

Radial Tip Industrial Exhauster
Radial tip fan designed wheels are used for moderate pressure for higher efficiency in moderately dust-laden air.
Airstream/Performance: Radial tip, self cleaning: clean air to medium dust loading, low to high volume, low to medium pressure applications.
Applications: Induced and forced draft fans (ID and FD fans), scrubber fans, cyclone fans, dust collector fans, baghouse exhaust fans, combustion air fans, dryer exhaust, kiln and flue gas recirculation, distribution air, cooling air, process air fans, supply air, corrosive and high temp applications.
- Sizes 19-1/8” – 85-1/4” wheel diameter
- Construction Class 15, 30 & 50
- Volume up to 140,000 CFM
- Pressure up to 45″ WG
- Temperature Range -30° to 1000°F
- Arrangements 1, 3, 4, 7, 8, 9

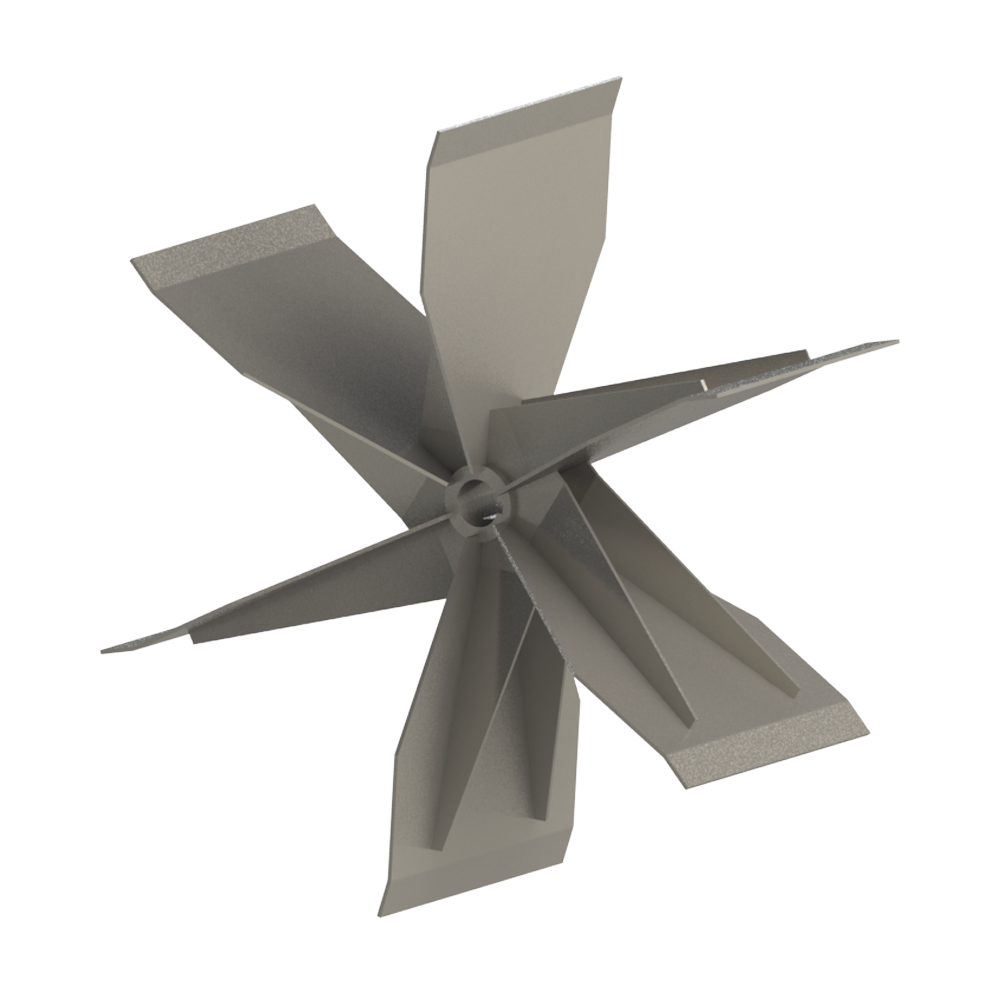

The IRO model is a material handling fan with a paddle wheel design used for applications where moderate pressure and CFM are required.
Airstream/Performance: Radial open (paddle wheel), clean air to heavy material loading, low to high volume, low to medium pressure applications.
Applications: Scrubber fans, cyclone fans, relay or booster fans, pneumatic conveying fans, classifier fans, material conveying fans, truck loading, chip fans, corrosive and high temp gas streams.
- Sizes 12-1/4” – 85-1/4” wheel diameter
- Construction Class 15, 30 & 50
- Volume up to 200,000 CFM
- Pressure up to 50″ WG
- Temperature Range -30° to 1000°F
- Arrangements 1, 8, 9

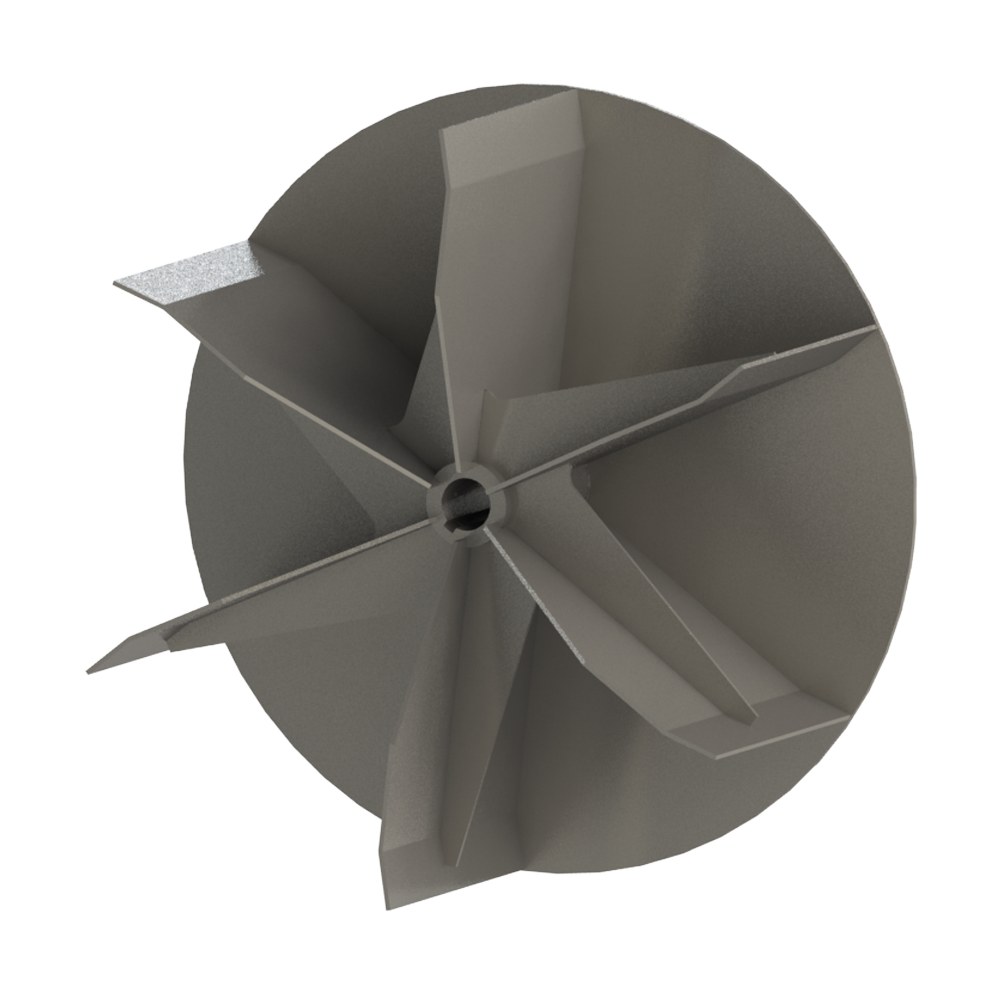

Paddle Wheel Back Plate Industrial Exhauster
The IRF model is a material handling fan with flat radial blades and flat back plate design prevent stringy or fibrous material from hanging up and wrapping around the blades, and are used for light to medium material handling applications.
Airstream/performance: Radial open (paddle wheel), clean air to heavy material loading, low to high volume, low to medium pressure applications.
Applications: Scrubber fans, cyclone fans, relay or booster fans, pneumatic conveying fans, classifier fans, material conveying fans, truck loading, chip fans, corrosive and high temp gas streams.
- Sizes 12-1/4” – 57-1/2” wheel diameter
- Construction Class 15, 30 & 50
- Volume up to 92,000 CFM
- Pressure up to 45″ WG
- Temperature Range -30° to 1000°F
- Arrangements 1, 4, 4V, 8, 9

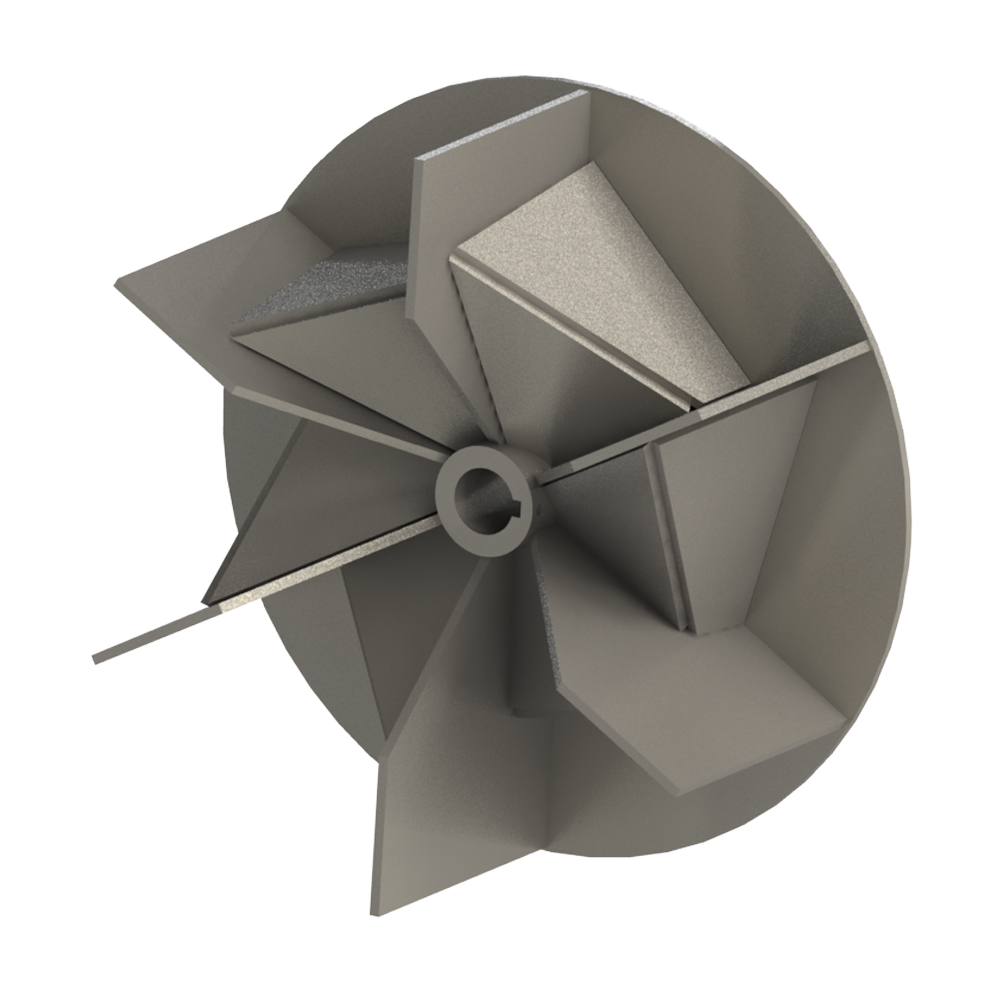

Paddle Wheel Back Plate w/ Gussets Industrial Exhauster
Back plated and box gusseted wheels are used for moderate pressure and for heavier fibrous material handling (paper, plastic, metal, and wood).
Airstream/Performance: Radial blade (wool wheel), medium to heavy material loading, low to high volume, low to medium pressure applications.
Applications: Material conveying fans, relay, booster, paper trim, classifier, hammermill, wood chip conveying, truck loading fans.
- Sizes 19-1/8” – 36-1/2” wheel diameter
- Construction Class 30 & 50
- Volume up to 35,000 CFM
- Pressure up to 45″ WG
- Temperature Range -30° to 1000°F
- Arrangements 1, 4, 8, 9

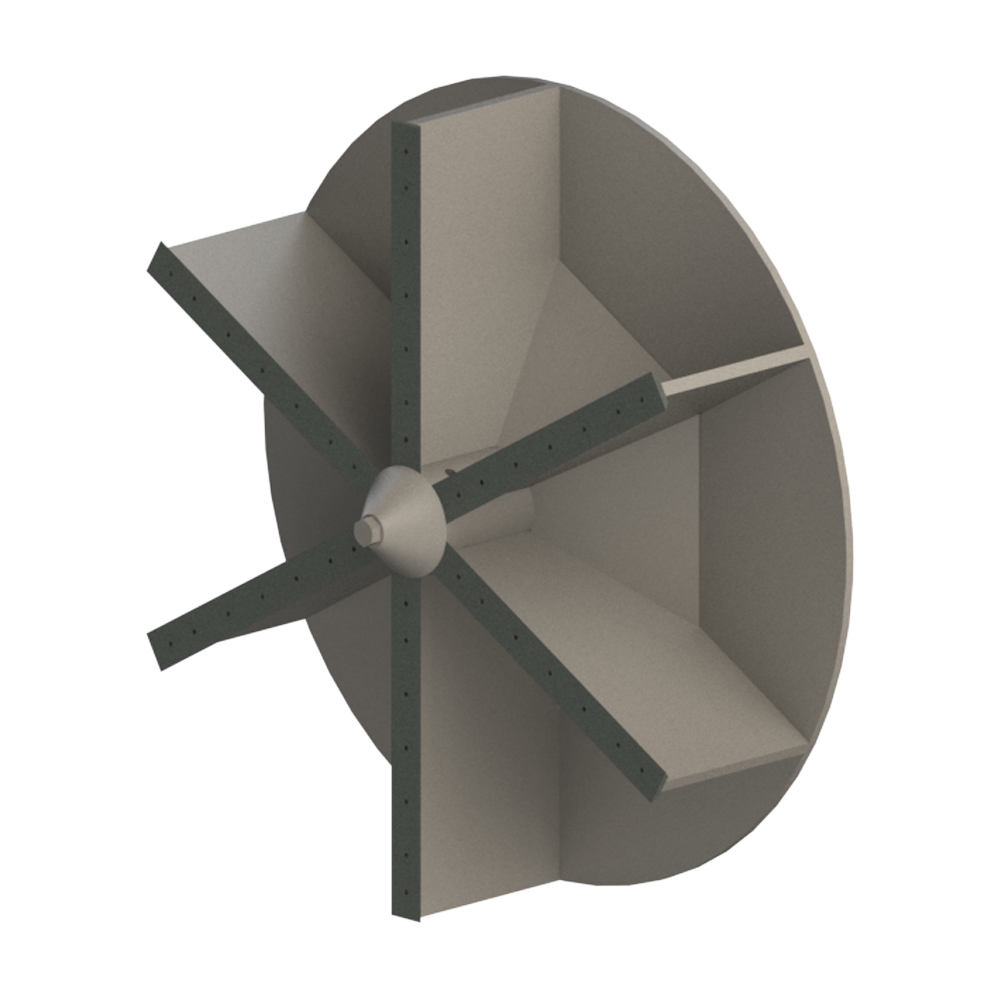

Radial Blade Chopper Fan
Wheels are back plated with radial, bolt on hardened steel machined blades.
Airstream/performance: Radial blade (chopper wheel), medium to heavy material loading, low to medium volume, low to medium pressure applications.
Applications: High density bulk material, carton stock, paper trim, classifier, material reducing and material conveying fans.
- Sizes 19-1/8” – 36-1/2” wheel diameter
- Construction Class 50
- Volume up to 19,800 CFM
- Pressure up to 39″ WG
- Temperature Range -30° to 200°F
- Arrangements 1, 4, 8, 9
Tube Axial Fans
- Design: A propeller-type wheel inside a cylindrical casing (tube).
- Airflow: Moves air straight through the tube, parallel to the fan’s axis.
- Efficiency: Close blade-to-housing fit increases airflow efficiency and pressure.
- Applications: Used in ducted systems for warehouses, data centers, manufacturing, and general HVAC.
- Performance: Ideal for high-volume, low-to-medium pressure tasks like cooling equipment or ventilating spaces, handling smoke, fumes, and heat.
- Industrial Ventilation & Exhaust: Used to remove contaminants, heat, smoke, and fumes from factories, manufacturing plants, and industrial spaces.
- Paint Spray Booths: Specifically designed for exhausting hazardous fumes and overspray in painting, coating, and finishing operations.
- HVAC & Air Management: Used for air handling in commercial buildings, shopping malls, and to facilitate air makeup in large, enclosed spaces.
- Process Cooling & Drying: Ideal for drying products in industrial processes and cooling, such as for motors, engines, and machinery.
- Material Handling: Used in systems requiring the movement of air to assist in conveying or handling materials.
- Direct Drive: Motor connected directly to the shaft.
- Belt Drive: Uses belts and pulleys for power transmission.
- Vaneaxial: A variation with straightening vanes for more controlled airflow, often used in demanding exhaust.
- Bifurcated: A design where the motor is outside the airstream, used for corrosive or hot air.

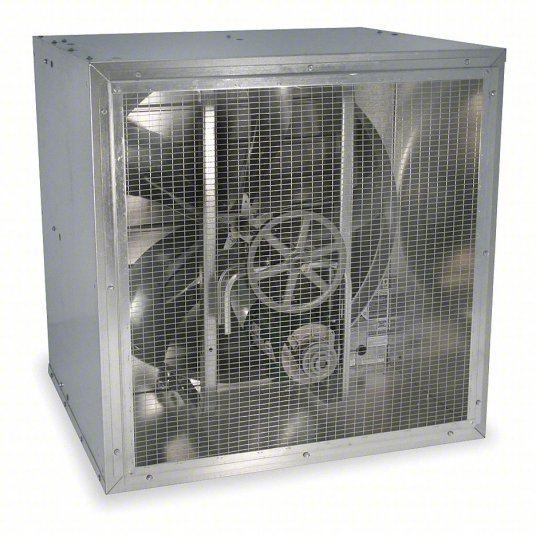

Wall Mount Propeller Fans
- Design: The fan typically consists of a propeller or a disk-type wheel with 3 to 6 blades, which can be made of sheet metal, aluminum, or plastic. This assembly is mounted within a ring, panel, or cage and driven by a motor, which can be either direct drive or belt-driven.
- Airflow: The design moves air in an axial direction (parallel to the motor shaft) and is optimized for applications where there is little resistance or pressure drop (less than 1 inch of water). They are not suitable for systems requiring high pressure, like extensive ductwork.
- Installation: They are installed directly in a wall opening, which saves floor space and allows for effective air distribution by positioning the fan higher in the room. They can be configured for supply (bringing air in) or exhaust (removing air out).
- Industrial Facilities: Widely used in factories, warehouses, and manufacturing areas to reduce heat, smoke, and odors, and to provide general ventilation for worker comfort.
- Agricultural Settings: Ideal for use in greenhouses and barns for climate control and maintaining steady air exchange for plants and livestock.
- Commercial Buildings: Found in spaces such as parking garages, gymnasiums, and commercial kitchens to ensure consistent and dependable air circulation.
- Workshops and Garages: Used in workshops and basements for ventilation, particularly when dealing with fumes, dust, or debris.
- Direct Drive: Motor connected directly to the shaft.
- Belt Drive: Uses belts and pulleys for power transmission.
- Vaneaxial: A variation with straightening vanes for more controlled airflow, often used in demanding exhaust.
- Bifurcated: A design where the motor is outside the airstream, used for corrosive or hot air.
